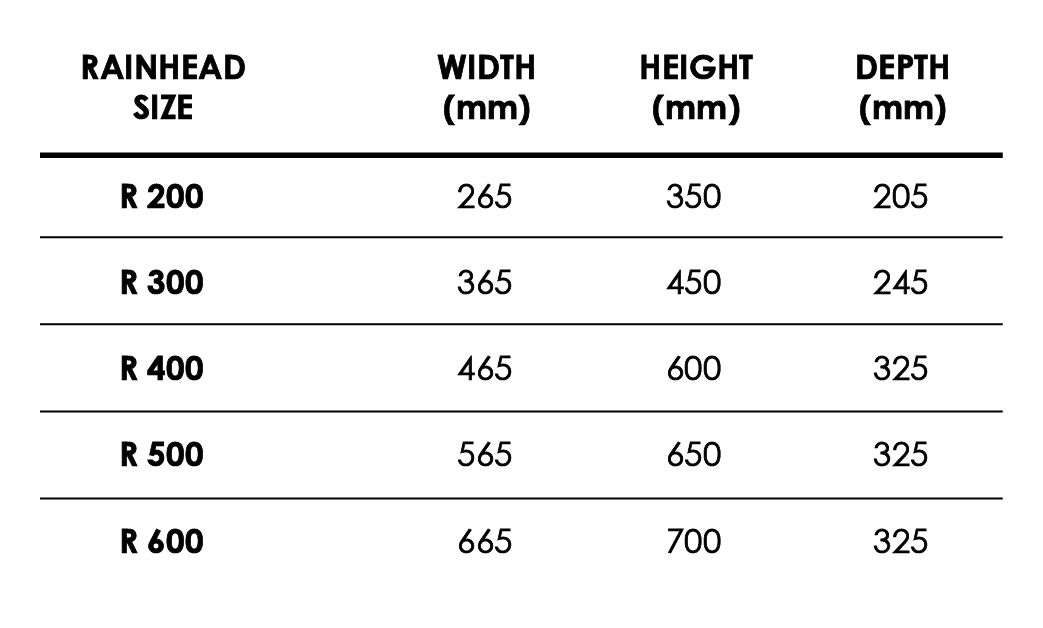

The Standard Dam Buster Rainhead features a compact, efficient design with dimensions engineered to be as slim as possible while maintaining full compliance with relevant standards. Its size ensures compatibility with common box gutter widths, delivering a low-profile yet effective solution.

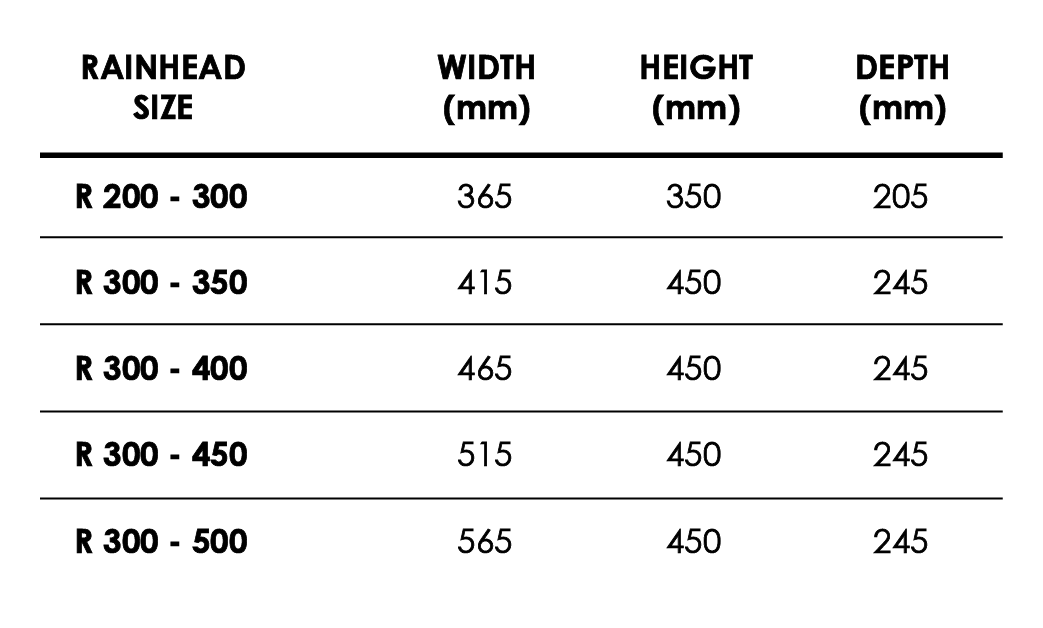

The Stretch Rainhead (including the box gutter receiver) is extended in the direction perpendicular to the box gutter to suit installation requirements. This configuration features a low-profile design derived from the R-200 or R-300 models, accommodating box gutter widths of up to 500 mm, depending on the specific model selected.

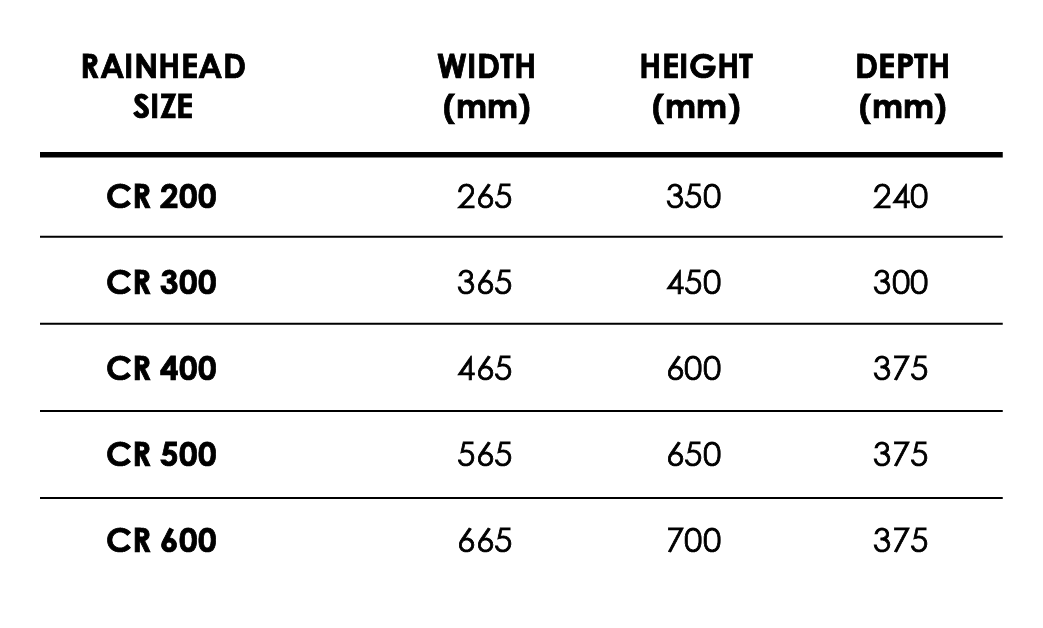

The Dam Buster Curved Rainhead features a distinctive curved front profile designed for both function and aesthetics. The overall depth of the Rainhead is measured to the foremost point of the curve, ensuring accurate dimensional reference for design and installation purposes.
